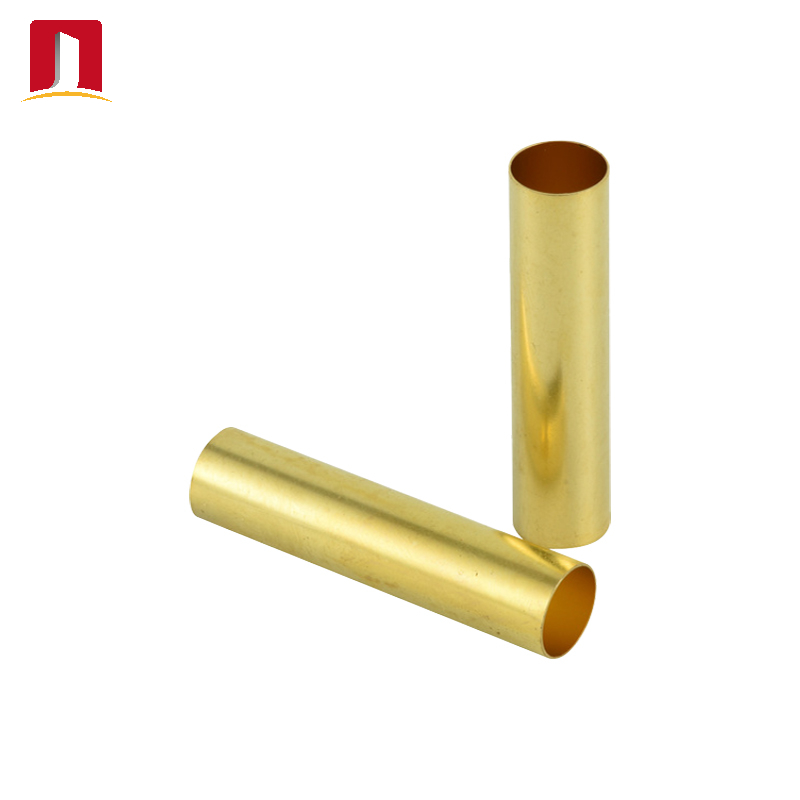

| copper pipe |
| Product Name | copper pipe / tube |
| Standard | GB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111,ASTMB395, |
| ASTM B359,ASTM B188,ASTM B698,ASTM B640,etc |
|
| Material | T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, |
| TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, |
| TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200, |
| C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300, |
| C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000, |
| C71500,C71520,C71640,C72200,etc |
|
| Shape | Round,Square,Rectangular,Oval,half-round |
|
| Size | Round:OD:2-914mm (1/16"-36") WT:0.2-120mm(SCH5S-SCH160S) |
| Square: Size:2*2-1016*1016mm(1/16"-40") WT:0.2-120mm |
| Rectangular:Size:2*4-1016*1219mm(1/16"-48") WT:0.2-120mm |
| Length:1m,2m,3m,6m,or as required |
|
| Hardness | 1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc |
|
| Surface | mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required |
|
| Application | 1. Pancake Coil for ACR, General Engineering Applications |
| 2. LWC Coil for ACR, General Engineering Applications |
| 3. Straight Copper Tubes for ACR and Refrigeration |
| 4. Inner-grooved copper tube for ACR and Refrigeration |
| 5. Copper Pipe for Transportation System of water, gas and oil |
| 6.PE-coated copper tube for water/gas/oil transportation system |
| 7.Semi-finished Copper tube for industrial applications |
| Cu (Min) | 99.90% |
